60x53mm centralized alarm insulation display instrument AID150 for hospital

Name: 60x53mm centralized alarm insulation display instrument AID150 for hospital
Brand: Acrel
Price: 92.40 USD

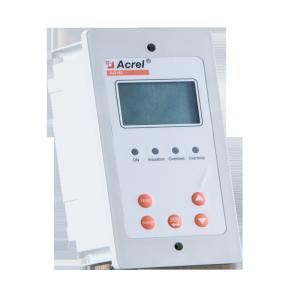

Quality 60x53mm centralized alarm insulation display instrument AID150 for hospital wholesale

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : AID150

Supply Ability : 100000 Piece/Pieces per Month

Packaging Details : It is packed in a crash bag and then put into a cardboard box.

MOQ : >=1 Pieces

Price : $92.40

Panel Size : 60x53mm

Installation : Panel

Pixel Pitch : 128*64 dot matrix

Application : alarm and display

Port : shanghai

Contact Now

60x53mm centralized alarm insulation display instrument AID150 for hospital

Product Description

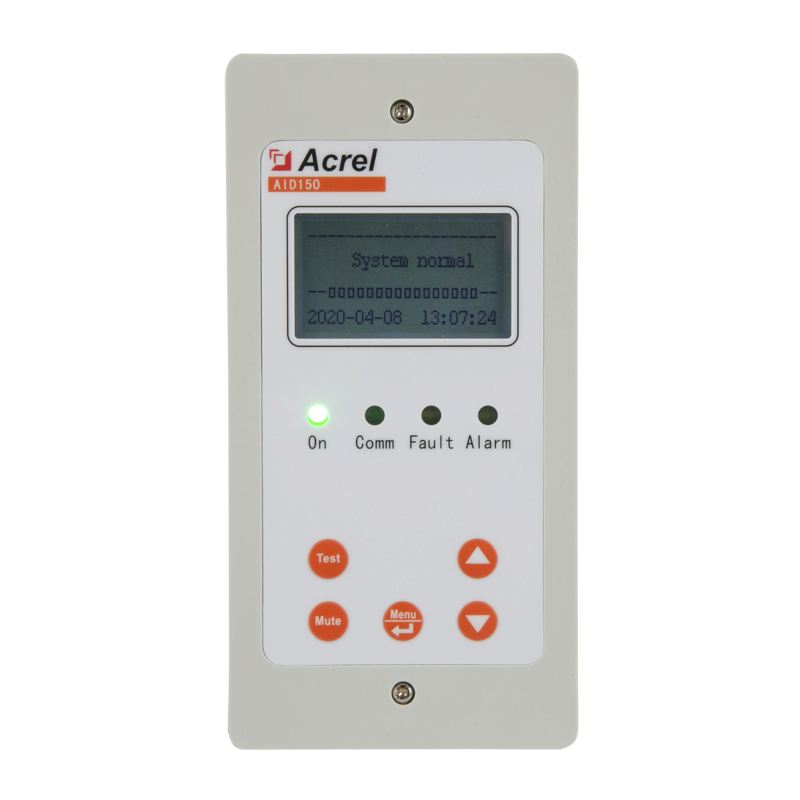

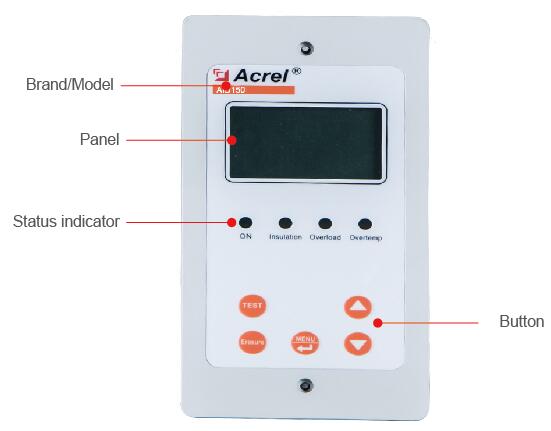

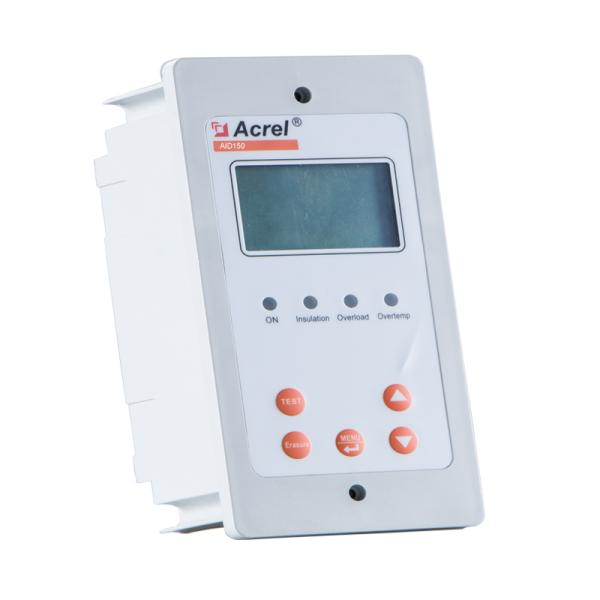

AID series alarm and display device is a remote display and sound and light alarm device by using advanced fieldbus communications technology. The device can be installed on the operating room or ICU, the medical staff can easily know the status of medical isolated power systems, and the type of fault when the system fails.

- The insulation resistance alarm value, load current alarm value and transformer temperature alarm value of the system can be set remotely.

- When the system appears insulation fault, overload, transformer temperature over limit and wiring fault, alarm and display instrument gives out the corresponding sound and light alarm, and has the function of eliminating sound alarm.

- Using advanced fieldbus technology, the remote monitoring function can be realized by real-time data interaction with the insulation monitor.
- It can monitor one set of AIM-M100 insulation monitor and be used for installation by embedding into wall.

- It can be applied to monitor operating room or ICU only using single set of isolated power.

Technical Parameter

Model	AID150
Voltage	DC24V
Power Consumption	≤0.6W
Insulation Alarm Value Range	50~999KΩ
Load Current Alarm Settings	14A,18A,22A,28A,35A,45A
Temperature Alarm Value Range	0~200℃
Alarm	Sound and light alarm
Alarm Type	Insulation fault, overload, over-temperature, equipment failure
Communication	RS485 interface, MODBUS-RTU protocol
Display Method	128*32 LCD

Wiring

Related Products

Packing & Delivery

It is packed in a crash bag and then put into a cardboard box.

Company Profile

Jiangsu Acrel Electric Co.,LTD [Stock Code:300286.SZ ] is one of the few leading companies in China who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since June2003, we have always been focused on the research, production and sales of intelligent electric meters. We concentrate on providing products and services to help customers improve electricity and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4KV substation automation system, building mounted photovoltaic(BMPV)system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.

Certifications

FAQ

1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China;

2. How long would your equipment be used?

Generally, more than 10 years.

3. How long could I get my order?
Stock Products: shipping within 5 days.
Customized products: usually 10-15 days. It depends on your design and quantity.

4. What certificate do you have?

We have ISO9001, CE, IEC and so on.

5. Can I get a sample to check the quality?
Samples are no problem. We are glad to offer you some for test.

6. What's your MOQ?

At least one pcs.
